Abstract base class for generic "point" objects. More...

#include <DF_Abstract_Point.hpp>

Inheritance diagram for DFLib::Abstract::Point:

Public Member Functions
virtual	~Point ()
	virtual destructor because there should always be one More...

virtual void	setXY (const std::vector< double > &aPosition)=0
	Set X-Y coordinates of the point. More...

virtual const std::vector< double > &	getXY ()=0
	Get X-Y coordinates of the point. More...

virtual const std::vector< double > &	getUserCoords ()=0
	Get coordinates in the user's coordinate system. More...

virtual void	setUserCoords (const std::vector< double > &uPosition)=0
	Set coordinates in the user's coordinate system. More...

virtual Point *	Clone ()=0
	Clone Self. More...

Detailed Description

Abstract base class for generic "point" objects.

The purpose of this extraordinarily simple class is to provide a generic interface for low-level DF classes to obtain the X-Y coordinates of a DF receiver location (or for returning a DF fix point) without regard to how the user actually provides the data or expects to view it.

The abstract interface works only with the X-Y representations of the coordinates. It is expected that in most cases for DF work this will be Mercator projection coordinates, but it could be any planar representation that is suitable for the user's work.

Constructor & Destructor Documentation

virtual DFLib::Abstract::Point::~Point ( )

inlinevirtual

virtual destructor because there should always be one

Reimplemented in DFLib::Proj::Point.

Member Function Documentation

virtual Point* DFLib::Abstract::Point::Clone ( )

pure virtual

Clone Self.

Make a copy of yourself, and return a pointer to the copy. This is useful as a prototype: pass a pointer to any concrete implementation to a function, and that function has a way of making other objects of precisely the same type by cloning.

Returns: pointer to

Implemented in DFLib::Proj::Point, DFLib::LatLon::Point, and DFLib::XY::Point.

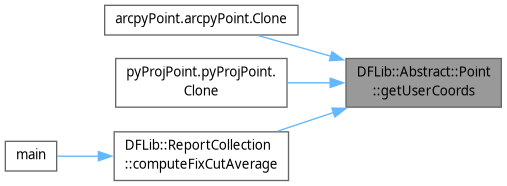

Here is the caller graph for this function:

virtual const std::vector<double>& DFLib::Abstract::Point::getUserCoords ( )

pure virtual

Get coordinates in the user's coordinate system.

Implemented in DFLib::Proj::Point, DFLib::LatLon::Point, and DFLib::XY::Point.

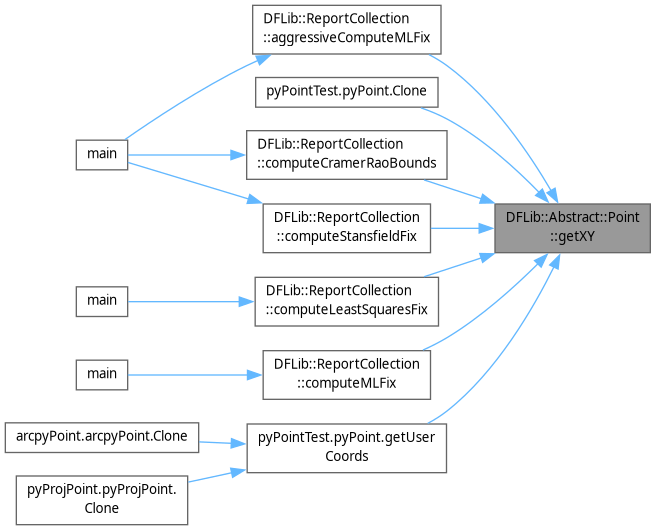

Here is the caller graph for this function:

virtual const std::vector<double>& DFLib::Abstract::Point::getXY ( )

pure virtual

Get X-Y coordinates of the point.

Note that this is NOT declared as a const member function, because implementations could, for efficiency, store both X-Y coordinates and another system of coordinates. In that case, getXY might trigger a coordinate system transformation, and might need to tinker with internals.

The reference returned, however, is const. One is not allowed to tinker with the internal representation through it.
